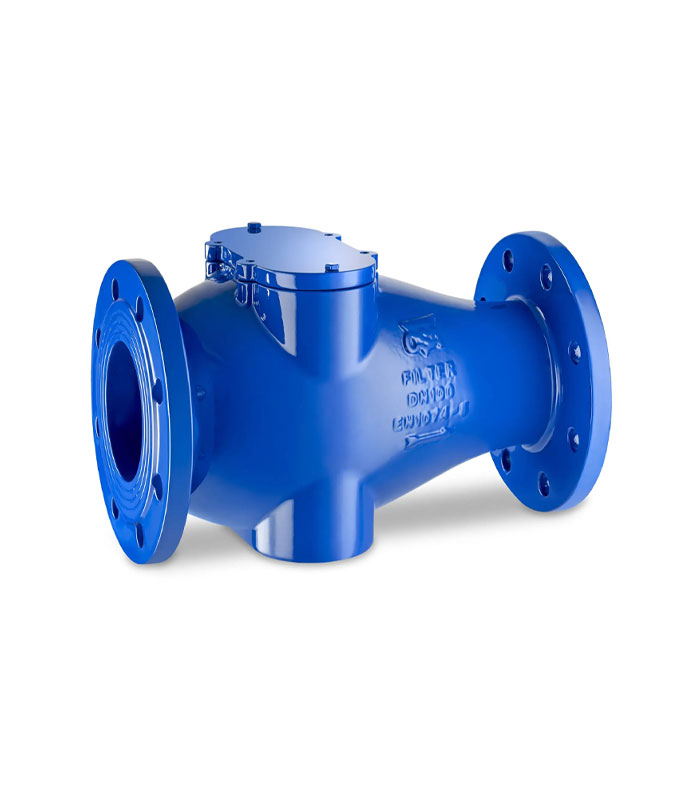

Mod.Fortix CSA high capacity horizontal strainer

The CSA strainer is used when effective filtration is required. Thanks to the needle shape body and compact design, maintenance is fast and easy and requires only top cover removal. The shape and flat stainless steel strainer mesh perpendicular to flow optimizes pressure drop compared to the majority of similar solutions to the market. The strainer may be installed in any position, however installation with the cover on top side is recommended.

Product features
• Epoxy painting applied through FBT technology blue RAL 5005

Working conditions
• Minimum pressure on the pilot : 0,5 bar plus head loss
• Maximum operating pressure: 25 bar.
• Fluid: treated water. Maximum temperature: 70°C

Flange
• Flange : DN 50 tol DN 300.
• Flanges according to EN 1092/2 (different drilling on request).

Standard
• Certified and tested in compliance with EN 1074/5.
