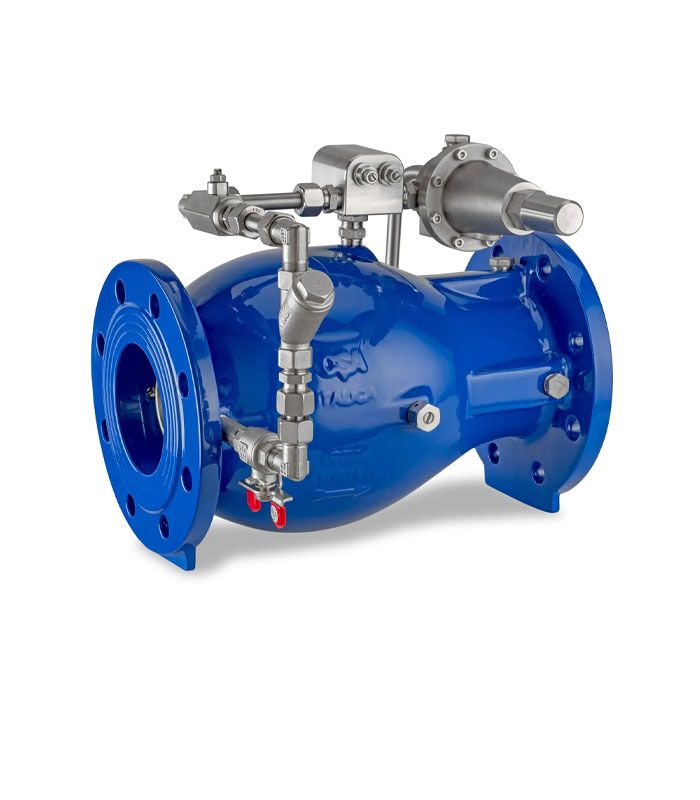

Italica 310 Pilot operated needle valves

Mod Italica 310 is an axial flow hydraulically operated automatic control valve that reduces and stabilizes the downstream pressure to a constant value, regardless of variation in demands and upstream pressure conditions. Normally equipped with low flow stability and cavitation reduction cage, thanks to the exclusive axial flow patter the valve is designed to reduce head loss, noise and cavitation damage.

Product features
• Entirely made in ductile cast iron
• FBT epoxy coating
• Stainless steel parts.

Working conditions
• Minimum operating pressure: 0,7 bar.
• Maximum operating pressure: 25 bar.
• Treated water maximum temperature: 70°C.

Connections
• Flanges size from DN 50 to DN 600 mm
• Flanges standard EN 1092/2, different on request.

Standard
• Design and testing according to EN 1074.

• Italica General Catalog
• Data sheet
